13 62 560 Removing and installing/replacing hot film air mass meter (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DME control unit.
Switch off ignition.

Release connector (1) on hot film air mass meter and disconnect.

Unfasten screws (2).

Tightening torque 13 62 6AZ .

Remove the hot film air mass meter (3).

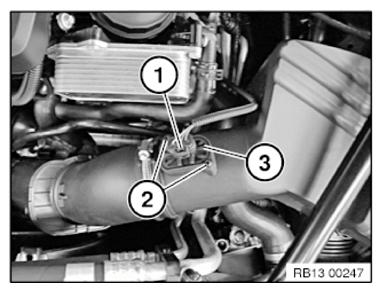

Fig 1: Identifying Hot Film Air Mass Meter, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Delete fault memory.
