13 62 010 Removing and installing/replacing fuel differential pressure sensor (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Unclip wiring harness (1) and lay to one side.

Unlock connector (2) and remove.

Release screws (3).

Tightening torque 13 62 4AZ .

Pull differential pressure sensor (4) out of intake plenum.

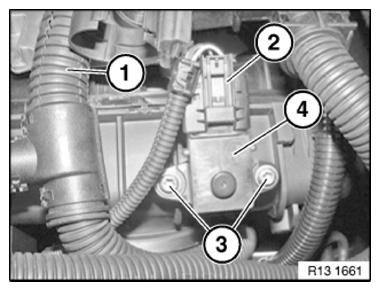

Fig 1: Identifying Differential Pressure Sensor, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Read out fault memory of control unit of Digital Engine Electronics (DME).

Check stored fault message.

Delete fault memory.
