13 71 155 Remove clean air pipe (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release clamps (1).

Tightening torque 13 71 3AZ .

Tightening torque 13 71 4AZ .

Remove top clean air pipe (2).

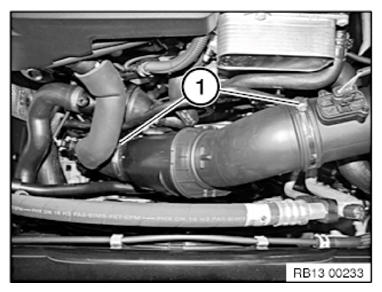

Fig 1: Identifying Air Pipe Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
