13 51 004 Removing and installing/replacing high pressure pump (N57 D30 O/T/S 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Special tool 11 8 741 must - after it has been installed - without fail remain bolted in the camshaft sprocket until all repair work has been completed.
When working on the fuel circuit, you must protect the alternator against dirt contamination.
Cover alternator with suitable materials. Failure to comply with this procedure may result in an alternator malfunction.

NOTE: After disconnecting the fuel injection line, it is absolutely essential to seal the high pressure pump and the high-pressure accumulator with protective caps 32 1 270 .
The position of the high pressure pump in relation to the valve gear does not affect its function. However, it must be taken into account on removal and installation.
For purposes of clarity, all pictures have been created to show the engine removed.

Recycling:

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Switch off ignition.
Remove PRESSURE LINES between high pressure pump and pressure accumulator.
Secure crankshaft position at firing TDC; for more information, refer to service information, Checking TIMING

Only for Dynamic Drive:

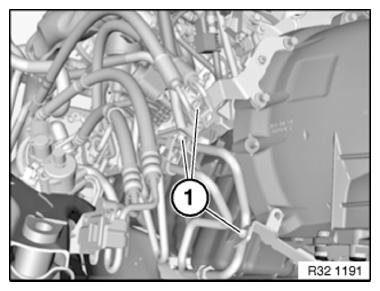

Release nuts (1) on holder.

Tightening torque 32 41 17AZ .

Lay Dynamic Drive lines to the side.

Fig 1: Identifying High Pressure Pump Holder Nut

Courtesy of BMW OF NORTH AMERICA, INC.

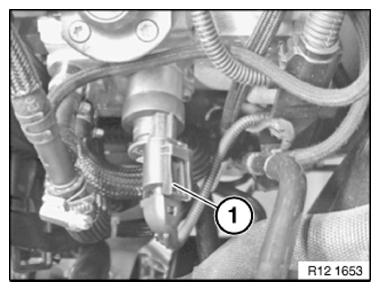

Unlock connector (1) on metering unit and detach. Detach fuel feed and return lines of high pressure pump.

Installation note:

Replace clamps. Tightening torque 13 51 3AZ .

Fig 2: Identifying Metering Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

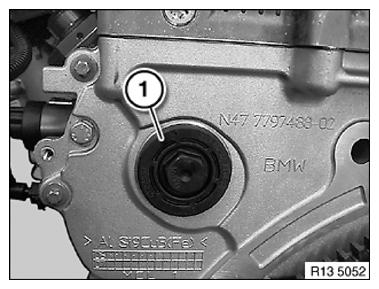

Release sealing cap in the timing case housing. Picture shows the sealing cap on the removed engine. Replace sealing cap with O-ring.

Installation note:

Tightening torque 11 14 1AZ .

Fig 3: Identifying Timing Case Housing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

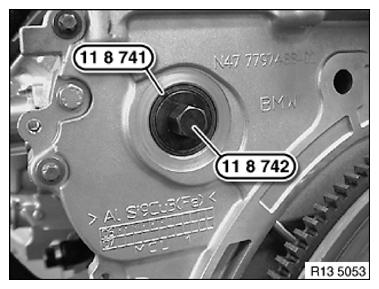

Screw in special tool 11 8 741 for positioning the camshaft sprocket of the high pressure pump. The remove special tool 11 8 742 . Special tool 11 8 741 remains in the timing case housing until the end of the repair work.

Fig 4: Identifying Special Tool (11 8 741 And 11 8 741)

Courtesy of BMW OF NORTH AMERICA, INC.

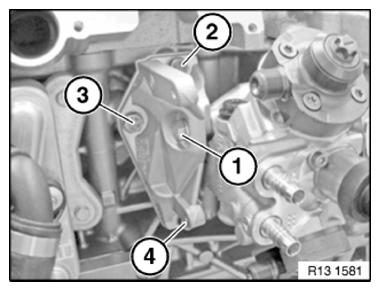

Release screws (1), (2), (3) and (4).

Remove high pressure pump support.

Fig 5: Identifying High Pressure Pump Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

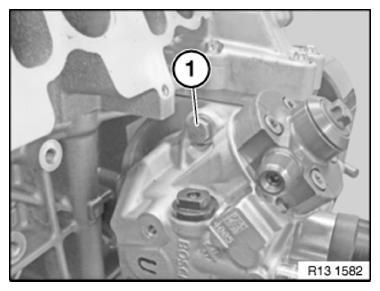

Release bolt (1) at top on high pressure pump.

Tightening torque 13 51 4AZ .

Fig 6: Identifying High Pressure Pump Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

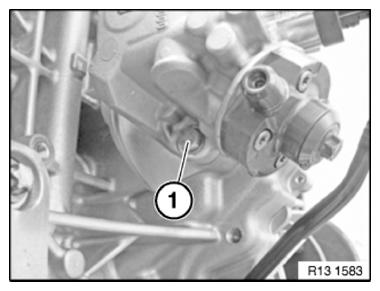

Release bolt (1) at bottom on high pressure pump.

Tightening torque 13 51 4AZ .

Fig 7: Identifying High Pressure Pump Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

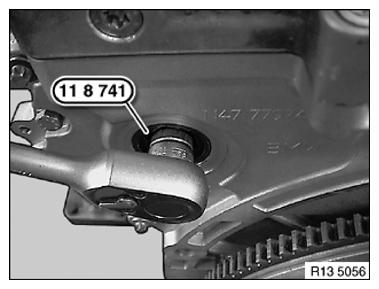

IMPORTANT: Special tool 11 8 741 remains in timing case housing.
Central bolt remains in camshaft sprocket.

Release screw connection between high pressure pump and camshaft sprocket.

NOTE: Central bolt is supported on special tool 11 8 740 until high pressure pump is pressed out.

Remove high pressure pump.

Installation note:

Tightening torque 13 52 1AZ .

Fig 8: Removing High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

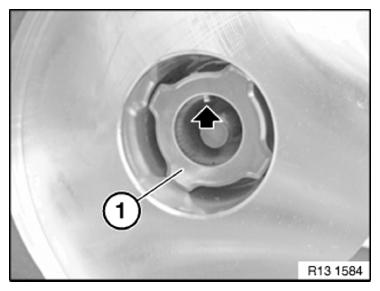

To insert the high pressure pump shaft in the sprocket wheel (1), it may be necessary to swing the high pressure pump through several degrees (spline groove-lug fit, see arrow). Then rotate high pressure pump back into screwing position.

Fig 9: Locating High Pressure Pump Shaft Sprocket Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing high pressure pump:

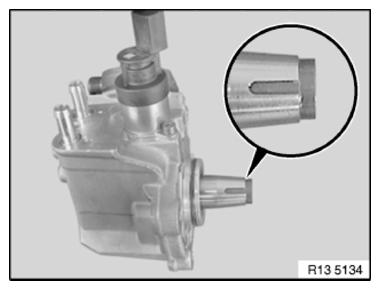

When installing a new high pressure pump, adapt the high pressure pump camshaft sprocket assignment. To do so, turn back high pressure pump at set-back part of shaft 45° clockwise (top view). Do not damage the shaft, especially the taper.

NOTE: Graphic N47.

Fig 10: Identifying High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

When installing the high pressure pump support, adhere to the screwing sequence.

Installation note:

Tighten down to head (gap-free) hand-tight, sequence 1-2-3-4
Tighten to final torque
Tightening sequence 2-3-4-1

Tightening torque 13 51 2AZ .

Fig 11: Identifying High Pressure Pump Support Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Assemble engine.

Bleed fuel system using BMW diagnosis system.

Check fuel system for tightness.

Reset adaptation of electric fuel pump with BMW diagnosis system.
