13 53 240 Replacing complete fuel injection pipe (N52T)

Special tools required:

• 13 5 161

Necessary preliminary work:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Disconnect BATTERY EARTH LEAD .
• Remove ACOUSTIC COVER

Recycling

Fuel escapes when fuel line is detached. Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

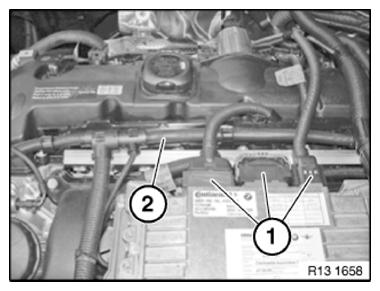

Unlock and detach plug connections (1) on control unit.

Unclip wiring harness (2) from connector strip for fuel injectors.

Fig 1: Identifying Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap from compressed air valve.

Fig 2: Locating Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air line (1) to compressed air valve.

Blow fuel back into fuel tank with a short blast of compressed air (max. 3 bar).

Fig 3: Identifying Compressed Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

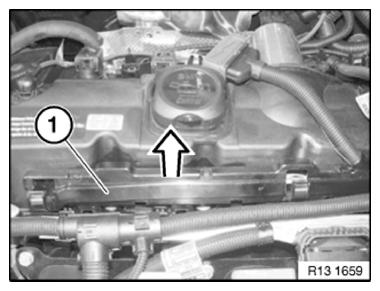

Detach connector strip (1) in upward direction from fuel rail.

Fig 4: Detaching Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

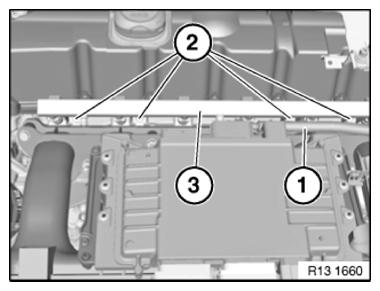

Unlock and detach fuel line (1).

Unfasten screws (2).

Tightening torque 13 53 1AZ .

Remove fuel injection pipe (3).

Replace sealing rings on fuel injectors.

Fig 5: Identifying Fuel Line, Fuel Injection Pipe And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

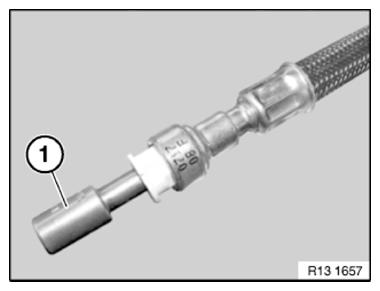

Close off fuel hose with special tool (1) 13 5 161 .

Fig 6: Identifying Special Tool (13 5 161)

Courtesy of BMW OF NORTH AMERICA, INC.
