13 31 029 Checking fuel delivery pressure (N52T)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Fuel in fuel lines is under pressure (approx. 5 bar).
Catch and dispose of escaping fuel.

Necessary preliminary tasks:

Switch off ignition.
Remove ACOUSTIC COVER

Remove dust cap.

Fig 1: Locating Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure with the 25 bar pressure sensor:

Connect the set of special tools 13 5 220 (consisting of 13 5 221 and 13 5 222 ) to the pressure sensor of the BMW diagnosis system.

Connect pressure sensor to the BMW diagnosis system or IMIB.

Fig 2: Identifying Special Tools (13 5 221 And 13 5 222)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not screw in shutoff valve up to mechanical limit position under any circumstances.
This could damage the valve in pressure regulator housing.

Install set of special tools 13 5 220 at injection pipe and tighten knurled nut hand-tight.

Unscrew shutoff valve (1) so that valve in pressure regulator housing is closed.

Establish fuel delivery pressure.

Screw in shutoff valve (1) until a pressure reading is displayed on BMW diagnosis system or IMIB. Read off fuel delivery pressure and compare with values in BMW diagnosis system.

Fig 3: Installing Special Tools (13 5 220) To Injection Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure with the 100 bar IMIB pressure sensor:

For the check of fuel delivery pressure with the 100 bar IMIB pressure sensor only tool 13 5 221 is needed from the set of special tools. Unscrew special tool 13 5 222 from special tool 13 5 221 .

Fig 4: Identifying Special Tools (13 5 221 And 13 5 222)

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 13 5 221 at fuel injection pipe and tighten knurled nut hand-tight.

Unscrew shutoff valve so that valve in pressure regulator housing is closed.

Screw onto special tool 13 5 221 , the special tool 11 4 310 .

Screw IMIB 100 bar pressure sensor on the special tool 11 4 310 .

Establish fuel delivery pressure.

Screw in shutoff valve until a pressure reading is displayed on IMIB. Read off fuel delivery pressure and compare with values in BMW diagnosis system.

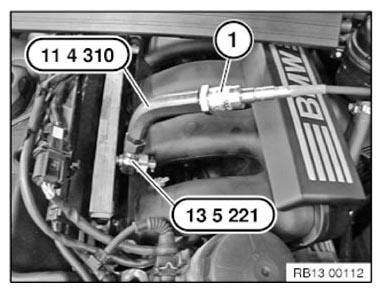

Fig 5: Installing Special Tool (13 5 221) To Fuel Injection Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal of the set of special tools 13 5 220 :

Stop engine.
Fully unscrew shutoff valve
Remove set of special tools 13 5 220 from pressure regulator housing
Catch and dispose of escaping fuel

NOTE: Read out the fault memory of the DME control unit.
Check stored fault messages.
Delete fault memory.
