13 31 025 Checking fuel return pressure (N57 D30 U/O/T/S 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE:

Connect BMW diagnosis system.

Recycling:

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste disposal regulations.

Disconnect snap fastener (3) from return line (1).

Fig 1: Identifying Snap Fastener And Fuel Feed Line

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 13 6 030 into the disconnected return line.

Screw onto special tool 13 6 030 , special tool 11 4 310 .

Screw IMIB 100 bar pressure sensor (1) on the special tool 11 4 310 .

NOTE: As an alternative to the 100 bar IMIB pressure sensor (1), the 25 bar pressure sensor can also be used. For this, screw on special tool 11 5 364 instead of special tool 11 4 310 into special tool 13 6 030 . Or directly screw the pressure manometer from the set of special tools 13 3 060 onto the special tool 13 6 030 .

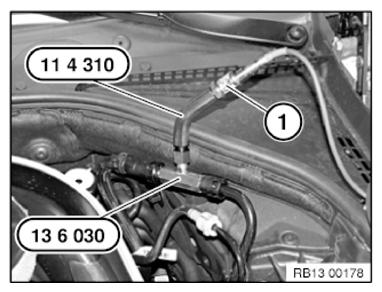

Fig 2: Inserting Special Tool (13 6 030) Into Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Build up fuel return pressure. Read off fuel return pressure on IMIB and compare with values in diagnosis system.
