34 41... Electromechanical Parking Brake - Emergency Release
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove EMF ACTUATORS on left and right.
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.

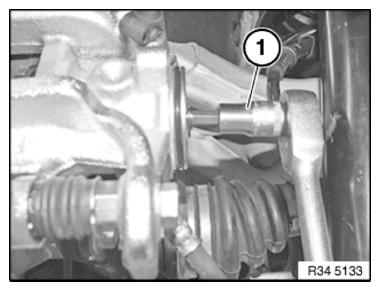

Using an 7 mm WAF hexagon socket wrench (1), turn back brake caliper spindle in clockwise direction.
Turn back until wheel can turn freely.
IMPORTANT:
Do not turn the spindle to the end stop.
At the end stop a fault code is set which will cause the system to shut down!
If this is the case, clear the fault memory
At the end stop a fault code is set which will cause the system to shut down!
If this is the case, clear the fault memory
NOTE:
Start-up after open circuit:
- Switch on ignition.
- Press brake button with brake pedal pressed.
- The indicator light in the instrument panel goes out as soon as the parking brake is released.
