34 31 181 Removing And Installing/Replacing Expansion Tank For Hydraulic Brake Control

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read and comply with GENERAL INFORMATION .
Remove COVER FOR COWL PANEL on left.

NOTE: Extract brake fluid out of expansion tank. Use a suction bottle used exclusively for drawing off brake fluid.
Do not reuse drawn out brake fluid.

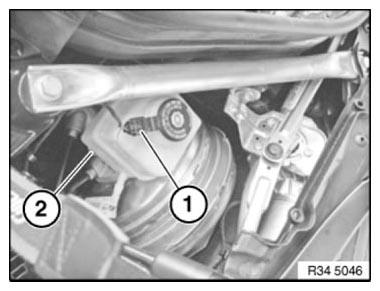

Disconnect plug connection (1).

Pull out locking pin (2) and lift out expansion tank in vertical direction.

Fig 1: Locking Pin And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

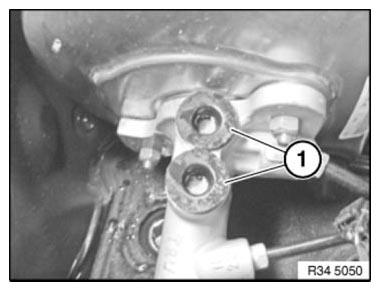

IMPORTANT: Check rubber plugs (1) in brake master cylinder for damage and replace if necessary.
Push the expansion tank vertically onto the master brake cylinder.

Fig 2: Rubber Plugs In Brake Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
