34 52 162 Removing And Installing/Replacing EMF Actuator
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Release parking brake.
- Switch off ignition.
IMPORTANT:
Switch off ignition at least 30 s before disconnecting the plug connection!
After installation, observe the following: switch on ignition and, using parking brake operating element, open parking brake once, close once and open again.

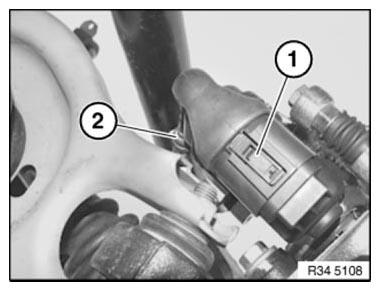

Disconnect plug connection (1).
Disengage cable from cable clip.

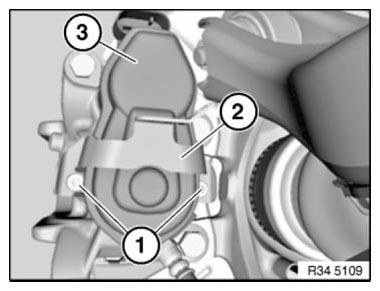

Release screws (1).
Installation note:
Replace screws.
Tightening Torque: 34 41 5AZ .
Take off holder (2).
Detach actuator drive (3) from brake caliper.
Installation note:

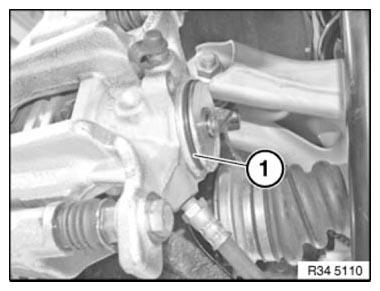

Check sealing ring (1), replace if necessary.
Apply a light coating of brake fluid to sealing ring (1) before fitting.
Installation note:

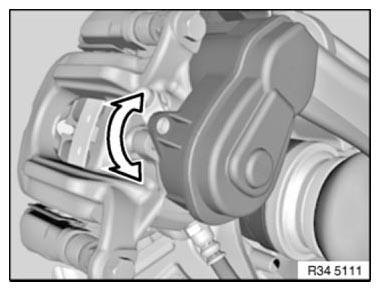

Carefully fit actuator drive until teeth engage and actuator drive rests flush on brake caliper.
If necessary, turn actuator drive slightly until bore hole and thread are flush.
