34 00 x01 Guideline For Applying Brake Pad Paste On Brake Pads And Brake Anchor Plate

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).

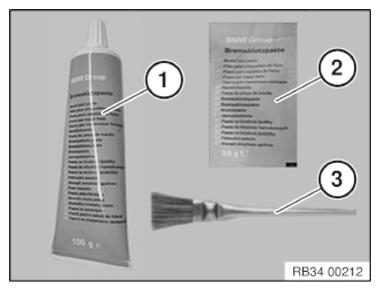

Spread brake pad paste onto the marked surfaces using a brush!

(1) Brake pad paste 100 gr. BMW part no. 83 19 2 158 852.
(2) Brake pad paste 3 gr. BMW part no. 83 19 2 158 851.
(3) Brush for spreading brake pad paste over the marked areas.

Fig 1: Brake Pad Paste Tube
Courtesy of BMW OF NORTH AMERICA, INC.

Brake IPS (CBI) 1-piston floating caliper brake (model ranges: 1-Series, 3-Series, 4-Series, X3).

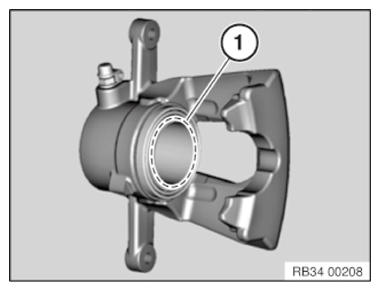

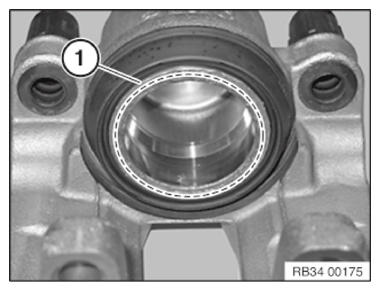

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 2: Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

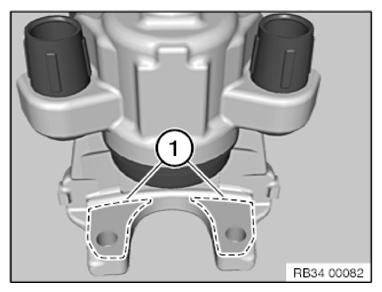

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 3: Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

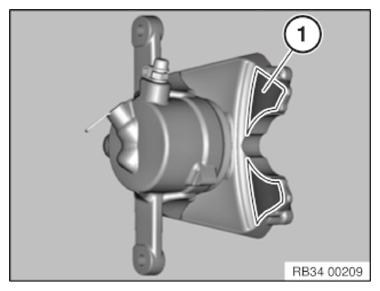

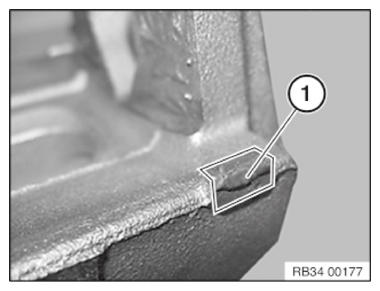

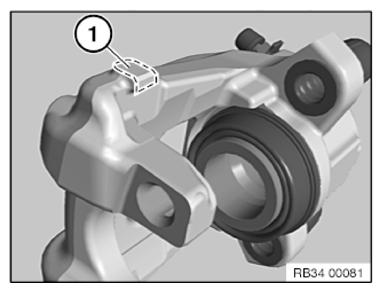

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 4: Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

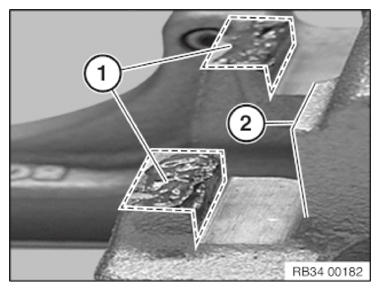

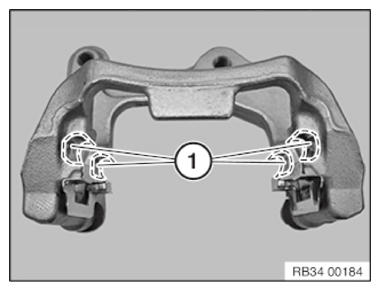

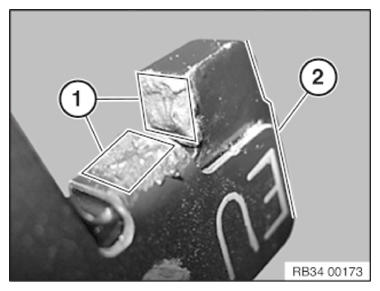

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 5: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

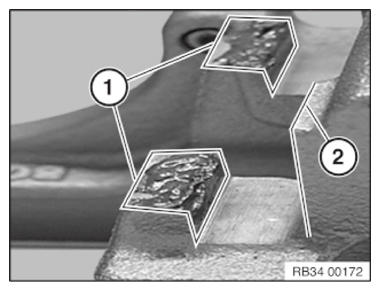

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 6: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

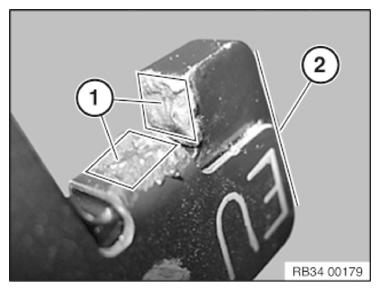

Apply a thin coating of brake pad paste to T-head of inner brake pad in area (1) and (2).

Fig 7: Brake Pad Paste Applying Area On T-Head Of Inner Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of brake pad paste to T-head of outer brake pad in area (1) and (2).

Fig 8: Brake Pad Paste Applying Area On T-Head Of Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 1- piston floating caliper brake (model ranges: 5- Series, 6-Series, 7-Series, 8-Series, X1, X3, X5, Z4, RR) .

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

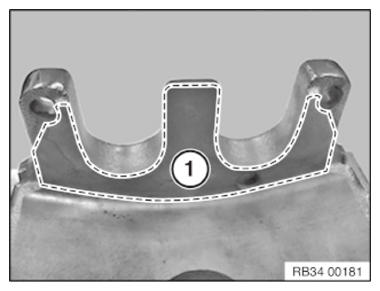

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 12: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

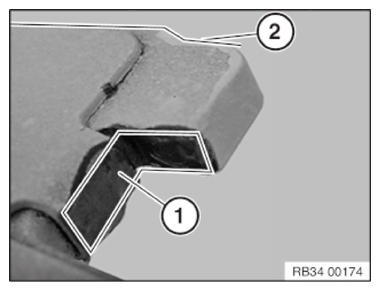

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 14: T-Head Of Inner Brake Pad With Brake Pad Paste In Area

Courtesy of BMW OF NORTH AMERICA, INC.

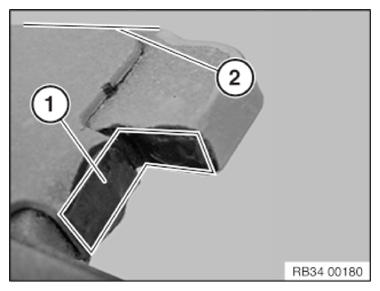

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 15: T-Head Of Outer Brake Pad With Brake Pad Paste In Area

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 2- piston floating caliper brake (model ranges: 5- Series, 6-Series, 7-Series, 8-Series, X5, RR) .

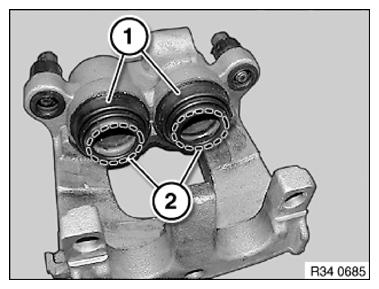

Clean contact surface (2) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 16: Contact Surface Of Brake Pistons

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 17: Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) and brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 18: Contact Surface And Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 21: T-Head Of Inner Brake Pad With Brake Pad Paste In Area

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 22: T-Head Of Outer Brake Pad With Brake Pad Paste In Area

Courtesy of BMW OF NORTH AMERICA, INC.

Brake Collette (TRW) 1-piston brake caliper (model ranges: MINI, 1-Series, 5-Series, 6-Series, Z4)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 23: Contact Surface Of Brake Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 24: Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 25: Guide Surface For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

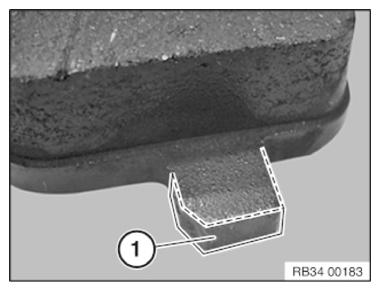

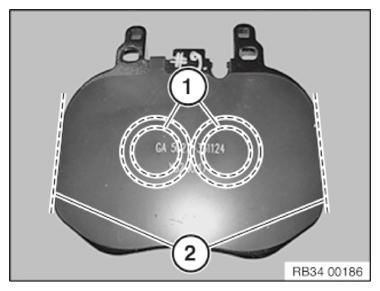

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Fig 26: Brake Pad Paste Application Area On T-Head Of Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Brake P 4.40 (Brembo) 4-piston fixed caliper brake (model ranges: MINI, 1-Series, 3-Series, 4-Series, 5-Series, 6-Series, 7-Series, 8-Series, X5, RR) .

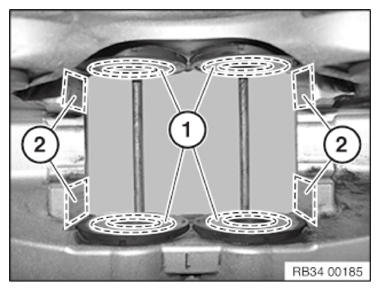

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 27: Brake Piston And Guide Inner And Outer Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

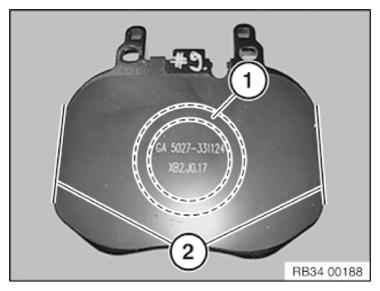

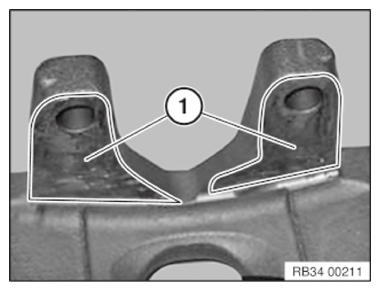

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 28: Contact Surface Area

Courtesy of BMW OF NORTH AMERICA, INC.

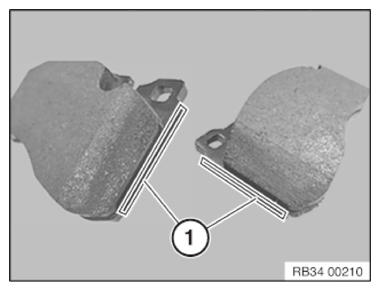

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 29: Brake Pad Paste Application Area On Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Brake P 4.40 (Brembo) 2-piston fixed caliper brake (model ranges: 1-Series, 3-Series) .

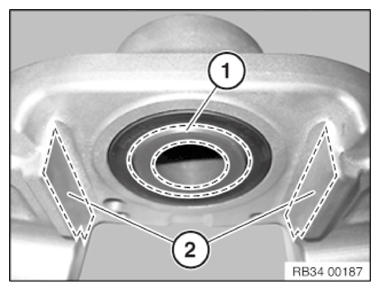

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 30: Contact Surface Of Brake Piston And Inner and Outer Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 31: Contact Surface Area For Brake Pad Paste Application

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 32: Brake Pad Paste Application Area On Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
