34 32 980 Replacing Rear Left Or Right Brake Hose

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with GENERAL INFORMATION .
After completing repair work: BLEED BRAKING SYSTEM .

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Pressing Brake Pedal Down To Floor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation note:

Tightening torque: 34 32 1AZ .

Fig 2: Brake Hose Square Head From Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Detach brake hose (1) from brake caliper.

Installation note:

First tighten brake hose on brake caliper.

Tightening torque: 34 32 3AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with components attached rigidly to the body.

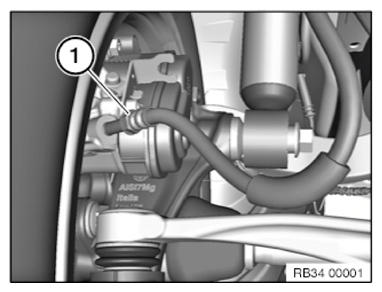

Fig 3: Brake Hose From Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Release banjo bolt (1) on brake caliper.

Release holder (2) if necessary.

Installation note:

Replace gaskets.

Tightening torque: 34 32 3AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with components attached rigidly to the body.

Fig 4: Banjo Bolt On Brake Caliper And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
