34 33 071 Replacing Vacuum Hose For Brake Booster

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo. This makes it easier to remove the vacuum hose.
Vacuum hose and non-return valve are welded together and are replaced together as a single unit.

Necessary preliminary tasks:

Read and comply with GENERAL INFORMATION .
Remove MOUNTING BRACKET FOR WINDSCREEN WIPER SYSTEM .

IMPORTANT: Do not kink vacuum line.
Vacuum line and brake lines must not touch each other in area of brake booster!
Contact with surrounding components is only permitted at the designated toothed rings!

Check vacuum line for ease of movement after reinstalling mounting bracket for windscreen wiper system.

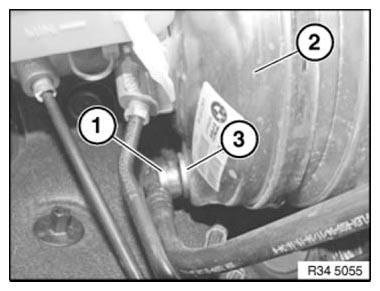

Detach vacuum line (1) from brake servo (2).

Installation note:

Check gasket (3), replace if necessary.

Fig 1: Vacuum Line From Brake Servo, Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

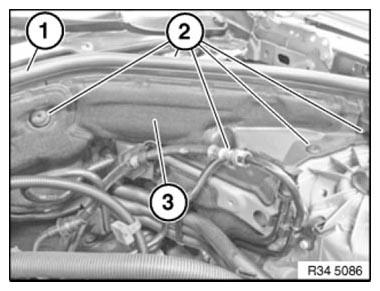

Remove gasket (1).

Unfasten screws (2).

Remove bulkhead upper section (3).

Fig 2: Bulkhead Upper Section, Gasket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

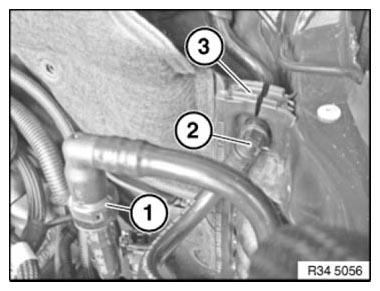

Release quick-release coupling (1).

Unclip vacuum line (2) from penetration (3).

Fig 3: Vacuum Line From Penetration And Quick-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
