11 66 010 Removing And Installing/Replacing Vacuum Line On Oil Vacuum Pump

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo. This makes it easier to remove the vacuum hose.

Necessary preliminary work:

Read and comply with GENERAL INFORMATION .
REMOVE ACOUSTIC COVER .
Remove rear acoustic cover.
Remove intake silencer housing.

IMPORTANT: Do not kink vacuum line.

Unlock vacuum line (1).

Release clip (2).

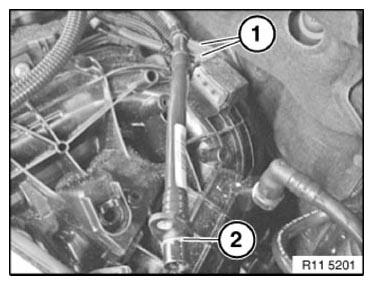

Fig 1: Vacuum Line And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation note:

Tightening torque: 11 00 1AZ .

Detach vacuum line (2) in upward direction.

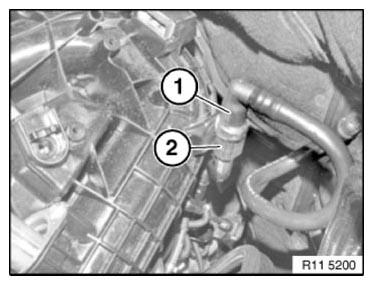

Fig 2: Detaching Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect vacuum lines (1).

Installation note:

Replace sealing ring (2).

Fig 3: Vacuum Lines And Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
