32 41 426 Replacing Expandable Hose Part 2 For Hydraulic Steering (S63)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir.
Remove FRONT UNDERBODY PROTECTION .
Remove STIFFENING PLATE .
Remove left steering assembly COVER .

Release screw (1) and remove return line (3).

Disconnect pressure line (2).

Installation note:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Tightening torque: 32 41 5AZ .

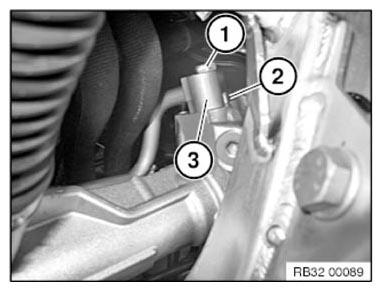

Fig 1: Line, Screw And Hydraulic Steering Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection (1) and remove line in downward direction.

Tightening torque: 32 41 15AZ .

Fig 2: Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check line connections for leak tightness.
