32 41 425 Replacing Expandable Hose Part 1 For Hydraulic Steering (S63)

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

• Draw off and dispose of hydraulic fluid from oil reservoir.
• Remove FRONT UNDERBODY PROTECTION .
• Remove COVER FOR STEERING ASSEMBLIES on left and right.
• Remove STIFFENING PLATE .
• Release UNIVERSAL JOINT  from hydraulic steering gear.
• Mark HYDRAULIC STEERING GEAR  with respect to front axle support, release and pull towards front.
• REMOVE drive belt for alternator.

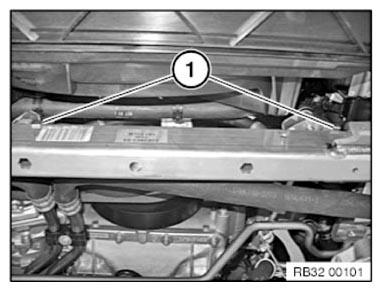

Loosen screws (1) of the line clip.

Tightening torque: 32 41 7AZ .

Fig 1: Line Clip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

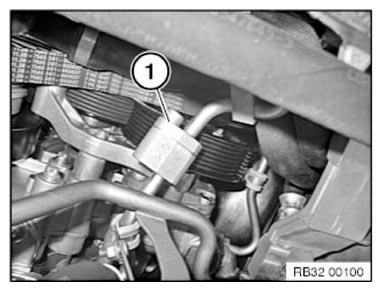

Release screw connection (1) of the line and place expandable hose Part 2 aside.

Tightening torque: 32 41 15AZ .

Fig 2: Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

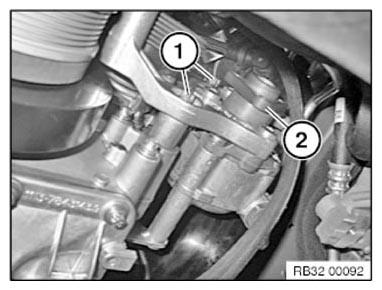

Release screws (1) and turn the power steering pump (2) to the side to be able to loosen the screwed line connection!

Tightening torque: 32 41 9AZ .

Fig 3: Screws And Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

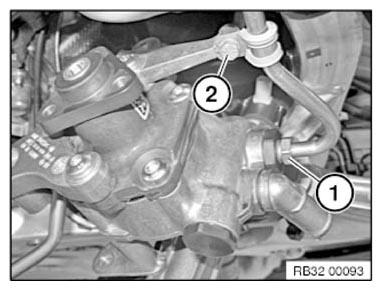

Release the banjo bolt (1) of the pressure line.

Tightening torque: 32 41 6AZ .

Release screw (2) and remove line in downward direction.

Tightening torque: 32 41 16AZ .

Installation note:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 4: Banjo Bolt Of Pressure Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Fill and bleed HYDRAULIC SYSTEM .
• Check pipe connections for leaks.
