32 41 420 Replacing Expansion Hose Part 1 (With ARS) (From Vane Pump) (N63)
WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plug. 32 1 270
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plug. 32 1 270
Recycling:
Catch and dispose of hydraulic fluid in a suitable expansion tank.
IMPORTANT:
Pressure line and connections must be provided with suitable seal plugs 32 1 270
immediately after removal!
Necessary preliminary work:
- Lower FRONT AXLE SUPPORT .

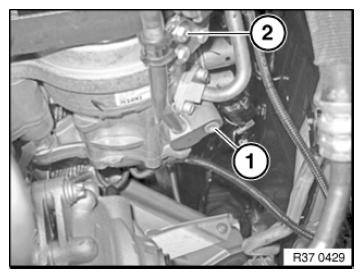

Release screw connection (1) on power steering pump.
Tightening torque: 32 41 6AZ . See PUMP AND OIL SUPPLY or HYDRAULIC LINES .
Release nut (2) from line clip and remove lines.
Tightening torque: 32 41 7AZ .

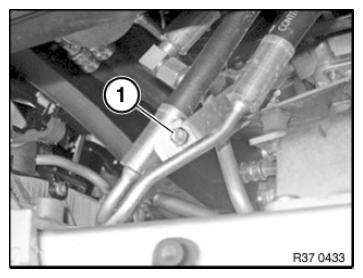

Release nut (1) from line clip.
Tightening torque: 32 41 7AZ .
Release screw connection (1) and remove line in downward direction.
Tightening torque: 32 41 11AZ .
IMPORTANT:
When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
After installation:
- Fill and bleed HYDRAULIC SYSTEM .
- Check line connections for tightness.
- Carry out INITIAL OPERATION FOR DYNAMIC DRIVE .
