32 41 333 Replacing Pressure Line For Hydraulic Steering (From Junction To Vane Pump) (550IX)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary work:

Draw off and dispose of hydraulic fluid from oil reservoir.
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING/REPLACING UNDERBODY PROTECTION (FRONT) or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove STIFFENING PLATE (only all-wheel drive vehicle and F04).
Lower front axle support (only all-wheel drive vehicles and F04).

Release screw (1).

Tightening torque: 32 41 6AZ

Release screw (2) on bracket.

Tightening torque: 32 41 14AZ

Disconnect pressure line (2) from power steering pump.

Installation note:

Replace all sealing rings.

Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.

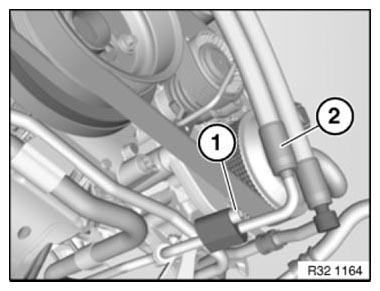

Fig 1: Pressure Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and detach pressure line from holder.

Tightening torque: 32 41 18AZ

Installation note:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

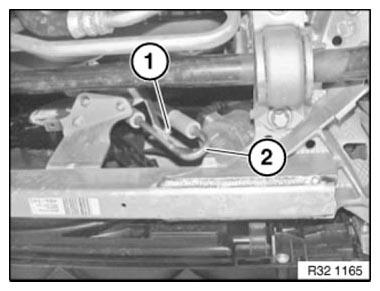

Fig 2: Screw And Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 32 41 11AZ

Disconnect pressure line (2).

Installation note:

Replace all sealing rings.

Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.

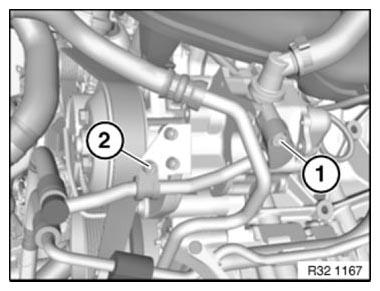

Fig 3: Pressure Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check pipe connections for leaks.
