32 41 332 Replacing Pressure Line For Power Steering (N57)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir.
Remove UNDERBODY PROTECTION at front and rear.
Remove front stiffening plate (F12 all-wheel drive vehicle).
Remove acoustic cover (F10/F11 until 09/2011 only).
REMOVE INTAKE PORT .
Remove left pressure pipe (only F01//F07 all-wheel drive vehicles).

Release screw (1) and remove pressure line (2) towards top.

Tightening torque: 32 41 11AZ .

Installation note:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Replacement:

Modify hydraulic line holder.

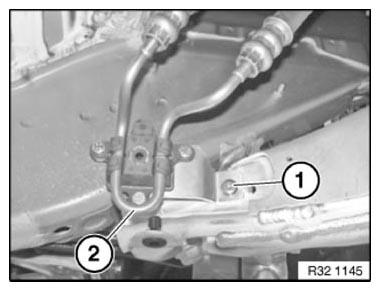

Fig 1: Screw And Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and detach pressure line (2) from power steering pump.

Installation note:

Replace all sealing rings.

Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.

Tightening torque: 32 41 6AZ .

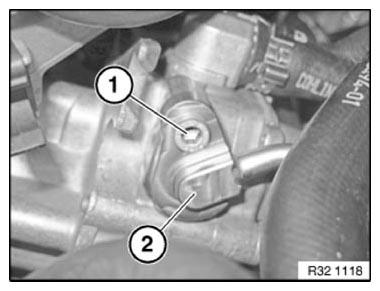

Fig 2: Pressure Line From Power Steering Pump And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), pull pressure line (3) off the steering box and remove toward top.

Tightening torque: 32 41 5AZ .

Fig 3: Pressure Line, Return Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check line connections for leaks.
