32 41 316 Intake Pipe To Hydraulic Pump N63T (From Oil Reservoir To Connecting Piece)
WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable expansion tank.
Necessary preliminary work:
- Draw off and dispose of hydraulic fluid from oil reservoir.
- Remove left intake port .
- Remove ENGINE CONTROL UNIT
from oil reservoir and place to the side
(Do not pull off the coolant hose on the control unit!)

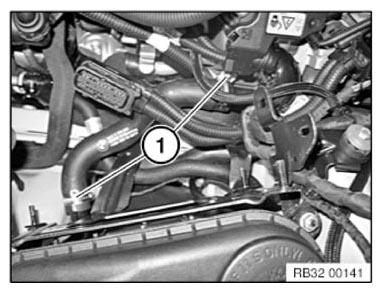

Loosen hose clamps (1).
Pull off intake pipe (2) on the oil reservoir and on the connecting piece.
Installation note:
Make sure intake pipe is laid without tension and with sufficient distance to adjoining components.
Marks on the oil reservoir and intake pipe resp. intake pipe and adapter must match.
Replace hose clamp.
Tightening torque: 32 41 3AZ .
After installation:
- Fill and bleed hydraulic system . See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) or 32 13 006 BLEEDING POWER STEERING UNIT .
- Check line connections for leaks.
