32 41 311 Replacing Intake Pipe For Hydraulic Steering (S63)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable expansion tank.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir.
Remove front UNDERBODY PROTECTION .
Remove STIFFENING PLATE .

Loosen screws (1) and turn oil reservoir to the side!

Fig 1: Screws Of Oil Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (2).

Detach intake pipe from fluid reservoir.

Installation note:

Replace hose clamp.

Fig 2: Hose Clamps And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Expose intake pipe up to connection on power steering pump.

Release hose clamp (1) from the vehicle underbody and detach intake line from power steering pump.

Remove the intake pipe from the bottom.

Installation note:

Replace hose clamp.

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

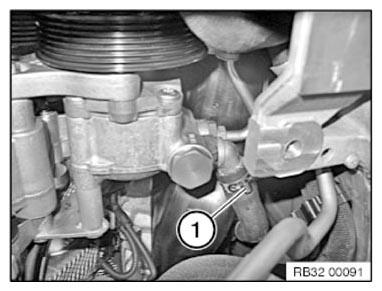

Fig 3: Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check line connections for leak tightness.
