32 41 060 Removing And Refitting (Replacing) Vane Pump For Hydraulic Steering Gear

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing power steering pump:
OIL RESERVOIR  must be replaced in event of metal abrasion, sluggish pump shaft or increased wear!
The filter integrated in the oil reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the oil reservoir as metallically glittering hydraulic fluid.
Replacement of the oil reservoir due to a leak (e.g. at the hose connections) is only required with unavoidable high penetrations of dirt.
WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.
IMPORTANT: Aluminum screws/bolts must be replaced each time they are released  .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage)!

Necessary preliminary tasks:

Release screw (1) and lines (3) and (2) pull off.

Installation note:

Replace sealing rings.

Tightening torque: 32 41 5AZ .

Fig 1: Line, Screw And Hydraulic Steering Gear
G09955405Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and nuts (2) of holder on steering gear.

Tightening torque: 32 41 16AZ .

Lay line to one side to obtain more room for removal!

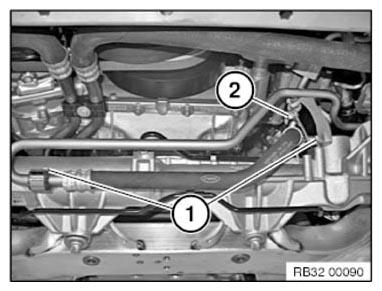

Fig 2: Screws And Nut Of Holder On Steering Gear
G09955561Courtesy of BMW OF NORTH AMERICA, INC.

Mark steering gear at front axle support, release and pull to the front.

See repair instructions REMOVING AND INSTALLING STEERING GEAR .

Lay pressure and return lines to one side.

Release hose clamp (1) and detach suction line from power steering pump.

Installation note:

Replace hose clamp.

Fig 3: Hose Clamp
G09955562Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove power steering pump (2) and turn far enough to the side to be able to release screw connection of pressure line.

See following work operation!

Tightening torque: 32 41 9AZ .

Fig 4: Screws And Power Steering Pump
G09955563Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1) of pressure line.

Tightening torque: 32 41 6AZ .

Release screw (2) and remove power steering pump to the bottom!

Tightening torque: 32 41 16AZ .

Installation note:

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

Fig 5: Banjo Bolt Of Pressure Line And Screw
G09955564Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
