32 41 037 Removing And Installing Power Steering Pump For Hydraulic Steering Gear With Dynamic Drive (N57)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.

NOTE: When replacing power steering pump:
FLUID RESERVOIR must be replaced in event of metal abrasion, sluggish pump shaft or increased wear!
The filter integrated in the oil reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the oil reservoir as metallically glittering hydraulic fluid.
Replacement of the oil reservoir due to a leak (e.g. at the hose connections) is only required with unavoidable high penetrations of dirt.

Necessary preliminary work:

REMOVE UNDERBODY PROTECTION .
Remove front stiffening plate (F12 all-wheel drive vehicle only).
Remove acoustic cover (only N57 up to 09/2011).
Remove INTAKE SILENCER HOUSING (N57 only up to 09/2011).
Remove INTAKE PORT .
Remove left pressure pipe (except N57S1).
Remove FAN COWL .
Remove coolant expansion tank and oil reservoir and set aside.
Remove power steering pump BELT PULLEY .

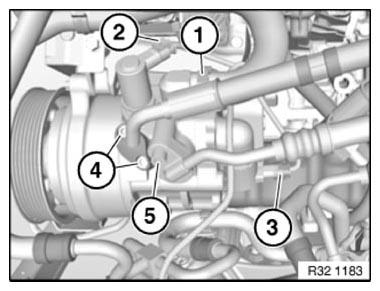

Release hose clamp (1) and detach intake pipe from power steering pump.

Disconnect plug connections (2) and (3).

Release screws (4) and detach expandable hose from power steering pump.

Tightening torque: 32 41 13AZ .

Release screw (5) and detach expandable hose from power steering pump.

Tightening torque: 32 14 6AZ

Installation note:

Replace all sealing rings.

Fig 1: Hose Clamp, Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

The identification (P) of the intake pipe and the rib of the power steering pump serve as a rough aid to alignment.

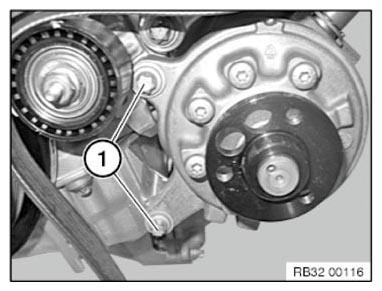

Release screws (1) on holder (2).

Tightening torque: 32 41 16AZ

Fig 2: Identifying Screws On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Only F01/F02/F07:

Release bolt (1) on power steering pump at rear.

Tightening torque: 32 41 9AZ

Fig 3: Power Steering Pump Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and remove power steering pump towards top.

Tightening torque: 32 41 9AZ

Fig 4: Power Steering Pump Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed HYDRAULIC SYSTEM .
Check line connections for leaks.
Carry out START-UP FOR ARS .
