0496959 330080 Wrench Minimum set: Mechanical tools AM: Notes

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 33 5 070 = 0495554

NOTE: For loosening and tightening the propeller shaft to rear axle final drive screw connection (slot nut). SW50. Replaces SWZ 33 5 040 (0495551) as well from 09/2014.

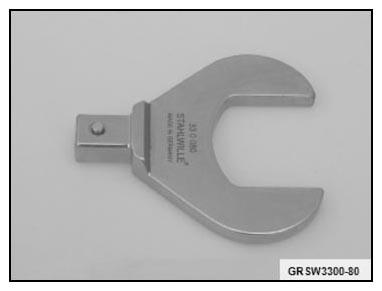

Fig 1: Identifying Wrench (0496959)
G09835102Courtesy of BMW OF NORTH AMERICA, INC.
