SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 09 02 (906)

Consisting of:

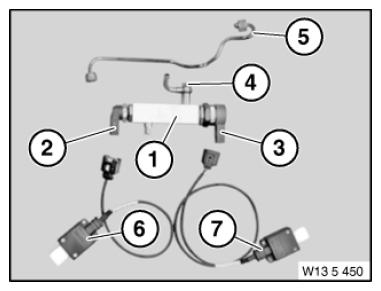

Fig 1: Identifying Device (0494456)

Courtesy of BMW OF NORTH AMERICA, INC.

0494457 Basic body
NOTE: (Basic body) With rail pressure sensor and pressure control valve. From 09/2011 can only be ordered as part of the complete special tool 0494456 (13 5 450).
0494458 Measuring device
NOTE: (rail pressure sensor) Rail pressure sensor contained in 13 5 451.
0494459 Valve
NOTE: (pressure control valve) Pressure control valve contained in 13 5 451.
0494460 Line
NOTE: (Return line with banjo bolt) Separate components not available, only via set 0494456.
0494461 Line
NOTE: (Fuel line/high pressure pump to testing device (basic body 13 5 451)) From 09/2011 can only be ordered as part of the complete special tool 0494456 (13 5 450).
0494462 Adapter cable
NOTE: (Rail pressure sensor adapter cable (400 mm)) From 09/2011 remaining inventories will be sold off and can only be ordered as part of the complete special tool 0494456 (13 5 450).
0494463 Adapter cable
NOTE: (Pressure control valve adapter cable (700 mm)) From 09/2011 remaining inventories will be sold off and can only be ordered as part of the complete special tool 0494456 (13 5 450).
0494491 Case
NOTE: (Case) (not pictured) From 09/2011 can only be ordered as part of the complete special tool 0494456 (13 5 450).
