SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 19 11 (742)

Consisting of:

  1. 2249137  Gauge
    NOTE: Gauge, intake camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.

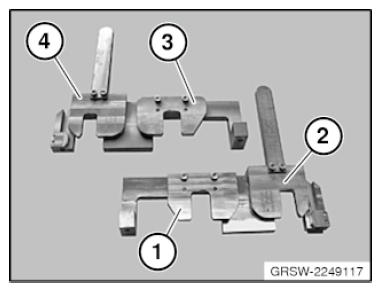

    Fig 1: Identifying Gauge (2249117)
    G09965340Courtesy of BMW OF NORTH AMERICA, INC.
  2. 2249140  Gauge
    NOTE: Gauge, exhaust camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.
  3. 2249144  Gauge
    NOTE: Gauge, intake camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.
  4. 2249159  Gauge
    NOTE: Gauge, exhaust camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.
