0496377 118931 Fixture AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Liquidation of existing inventory and then available only as a complete tool set 11 8 930 (83 30 0 496 370) - as of 13.03.12

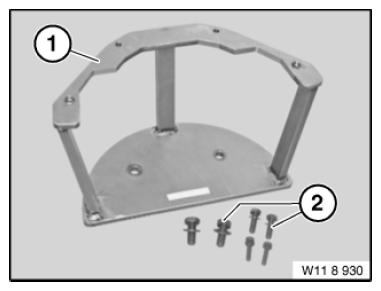

Fig 1: Identifying Fixture (0496377)
G09965284Courtesy of BMW OF NORTH AMERICA, INC.
