SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 05 07 (353)

Consisting of:

  1. 0496128  Basic body
    NOTE: Available only as a complete tool set 11 8 800 = 83 30 0 496 127 - as of 30.11.2011

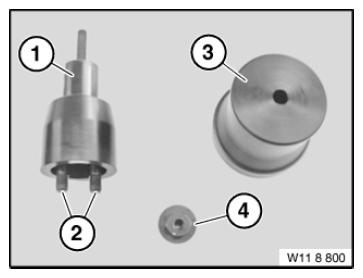

    Fig 1: Identifying Device (0496127)
    G09965237Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0496129  Screw
    NOTE: (Set of screws) Can only be ordered as part of complete tool 11 9 660 = 0495955
  3. 0496130  Holding sleeve
    NOTE: (Thrust piece) sale of existing inventory and then available as part of complete tool set 11 8 800 = 83 30 0 496 127 only - as of 30.11.2011
  4. 0496131  Nut
    NOTE: (Nut with collar) available as part of set of tools 11 8 800 = 83 30 0 496 127 only - as of 30.11.2011
