SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 05 (173)

Consisting of:

  1. 0495178  Screw
    NOTE: (Banjo bolt with ring connector)

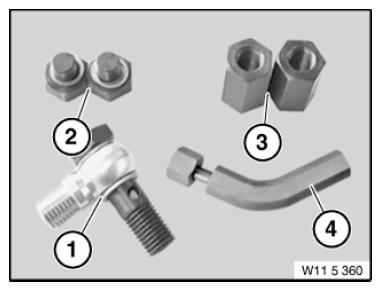

    Fig 1: Identifying Adapter (0495130)
    G09964991Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0495179  Screw
    NOTE: (Set of screw plugs (2 x))
  3. 0495262  Nut
    NOTE: (Set of lock nuts (2 x))
  4. 0495568 Adapter
    NOTE: For connecting pressure sensor
