SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 17 04 (130)

Consisting of:

  1. 0495020  Clip

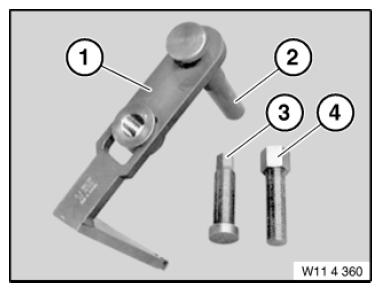

    Fig 1: Identifying Device (0495019)
    G09965224Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0495021  Adapter
    NOTE: (Adapter with knurled screw)
  3. 0495022  Spindle
    NOTE: (Pressure spindle)
  4. 0495023  Spindle
    NOTE: (Drawing spindle)
