SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 17 04 (130)

Consisting of:

0495015 Plate
NOTE: (Base plate with gasket) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011

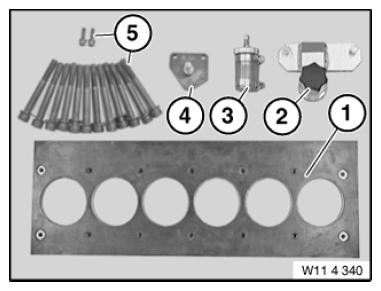

Fig 1: Identifying Device (0495014)
Courtesy of BMW OF NORTH AMERICA, INC.
0495016 Plate
NOTE: (Plate with thrust piece) Available only as a complete tool set 11 4 340 = 83 30 0 495 014 - as of 29.11.2011
0495017 Hose
NOTE: (Hose with air connection) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011
0495724 Plate
NOTE: (Adapter plate with valve) N54 Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011
0495725 Screw
NOTE: (Screw set) N54 sale of existing inventory then available as part of set of special tools 11 4 340 = 83 30 0 495 014 only - as of 29.11.2011
