0494607 119132 Pin AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Lock pin) (not shown). Beginning from 10/2010 only available as tool set 11 9 130 (0493749).

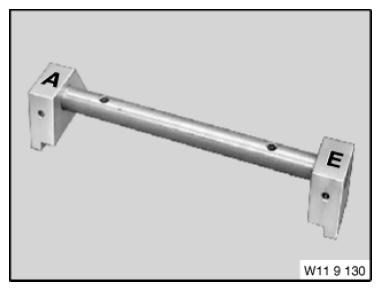

Fig 1: Identifying Pin (0494607)

Courtesy of BMW OF NORTH AMERICA, INC.
