0494604 118122 Gauge AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Gauge with bore hole). Beginning from 10/2010 only available as tool set 11 8 120 (0493580).

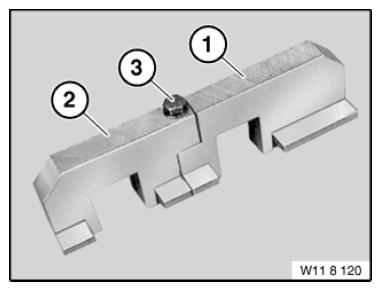

Fig 1: Identifying Gauge (0494604)

Courtesy of BMW OF NORTH AMERICA, INC.
