SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

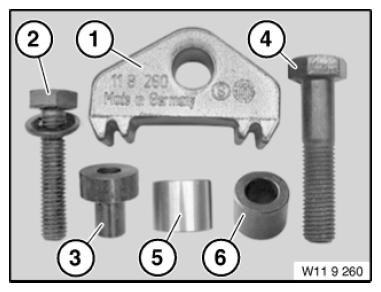

Fig 1: Identifying Holder (0493938)
G09965397Courtesy of BMW OF NORTH AMERICA, INC.
  1. 0494034  Holder
    NOTE: (Individual counter support)
  2. 0494035  Screw
    NOTE: (Bolt (thread M10) with washer) For screwing counter support
  3. 0494129  Bush
    NOTE: (Bush for counter support) For counter support, for retaining flywheel when gearbox is removed Engine: N62, N73
  4. 0494130  Screw
    NOTE: (Bolt (thread M12)) For counter support for retaining flywheel when gearbox is removed
  5. 0494793  Bush
  6. 0495216  Bush
    NOTE: For counter support, for retaining flywheel when gearbox is removed Engine: M57TU2
