SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

  1. 0494021  Bush

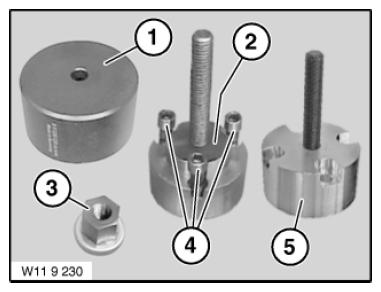

    Fig 1: Identifying Device (0493935)
    G09965184Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0494022  Spindle
  3. 0494023  Nut
  4. 0494024  Screw
    NOTE: (screws (3 x))
  5. 0496670  Spindle
    NOTE: N55
