0493711 117390 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Pressure testing fixture, complete) For sealing coolant openings when pressure-testing cylinder head for watertightness

Consisting of:

0493712 Strip

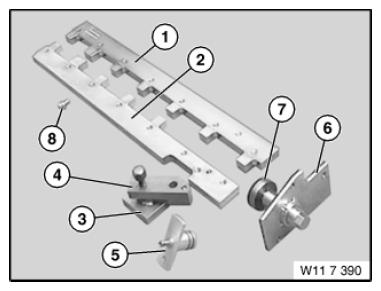

Fig 1: Identifying Device (0493711)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Sealing strip with 7 tabs) liquidation of current inventory and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493713 Strip
NOTE: (Sealing strip with 5 tabs) liquidation of current inventory and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493714 Plate
NOTE: (Cover plate) For cylinder head joint surface, liquidation of remaining inventory and then only available with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493715 Holder
NOTE: Liquidation of current inventory with pressure spindle and mounting screw for 11 7 393 then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493716 Plug
NOTE: (Plug) Liquidation of current inventory with air connection fitting and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493717 Plate
NOTE: (Cover plate, end face) Liquidation of current inventory and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493718 Spindle
NOTE: Liquidation of current inventory with thrust piece for 11 7 396 and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493719 Screw
NOTE: (Threaded plug, intake side) Liquidation of current inventory and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status 11.09.12.
