0491049 115060 Measuring device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Temperature sensor) For measuring cylinder head temperature when replacing toothed belt

Consisting of:

1 = 0491050 Measuring device
NOTE: (Device) Old type: TTX 1090/new type: TFN 1093
2 = 0491051 Sensor
NOTE: (Sensor)
9 = 0491052 Operating instructions

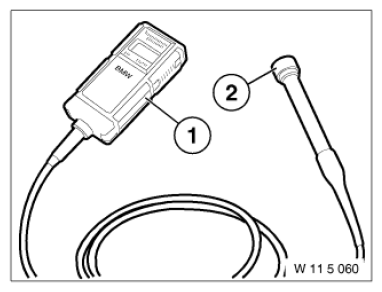

Fig 1: Identifying Measuring Device (0491049)
Courtesy of BMW OF NORTH AMERICA, INC.
