0491026 114300 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Device/engine identification) to imprint the engine number and engine identification

Consisting of:

1 = 0491027 Holder
NOTE: (Die holder) engine: M50, M52
2 = 0491028 Die-plate

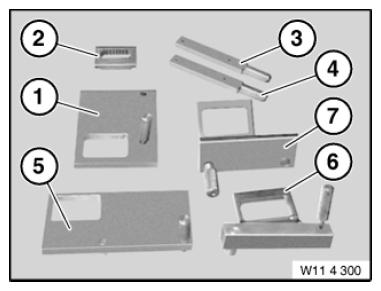

Fig 1: Identifying Device (0491026)
Courtesy of BMW OF NORTH AMERICA, INC.
3 = 0491029 Punch element
NOTE: (Embossing stamps 0...9, separate embossing stamps) 0...9, list digits individually
4 = 0491030 Punch element
NOTE: (Embossed letters) embossed letters A, E, S Indication of the letter is required engine: M70, M73 - letter A, S engine: M40, M43 - letter E engine: M42, M44, M50, M52, M60, M62 - letter S
5 = 0493371 Holder
NOTE: (Die holder) engine: M40, M42, M43, M44
6 = 0493372 Holder
NOTE: (Die holder) engine: M60, M62
7 = 0493373 Holder
NOTE: (Die holder) engine: M70, M73
9 = 0493374 Case
NOTE: (Case)
