0490826 112110 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300490504

NOTE: For retightening the connecting rod and cylinder head bolts - Replaced by 00 9 120 (0 490 504)

Consisting of:

0490827 Extension
NOTE: (Extension 1/1") Replaced by 00 9 120 (0 490 504)
0490828 Washer
NOTE: (Graduated disc 180°) Replaced by 00 9 120 (0 490 504)
0490829 Holding sleeve
NOTE: (Guide sleeve) Replaced by 00 9 120 (0 490 504)
0490830 Nut
NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)

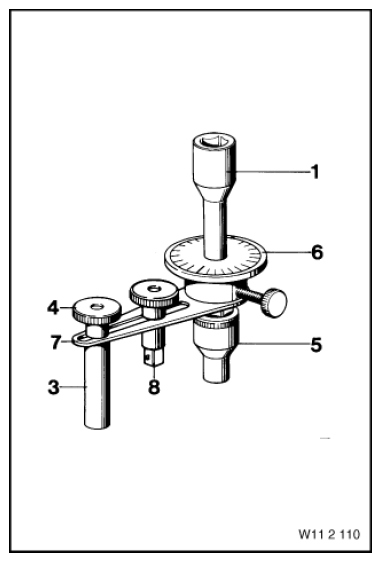

Fig 1: Identifying Device (0490826)
Courtesy of BMW OF NORTH AMERICA, INC.
0490831 Socket wrench insert
NOTE: (Socket wrench insert WAF 10) Replaced by 00 9 120 (0 490 504)
0490832 Washer
NOTE: (Graduated disc up to 270°) Replaced by 00 9 120 (0 490 504)
0490833 Tab
NOTE: For counter-holding on the cylinder head Replaced by 00 9 120 (0 490 504)
0490834 Adapter
NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
