Storage Location

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

C11

Consisting of:

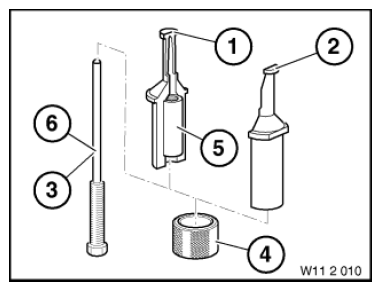

Fig 1: Identifying Puller (0490805)

Courtesy of BMW OF NORTH AMERICA, INC.

0490806 Claw
NOTE: (Remover claw I) With threaded bush - engine: except M60, M62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
0490807 Claw
NOTE: (Remover claw II) engine: except M60, M62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
0490808 Spindle
NOTE: (Pressure spindle) Engine: except M60, M62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
0490809 Holding sleeve
NOTE: Engine: except M60, M62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
0490810 Bush
NOTE: (Threaded bush) Engine: except M60, M62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
0490811 Spindle
NOTE: (Pressure spindle) Engine: M60/B30, M62, S62. Can no longer be ordered separately. Only available as part of set 11 2 010 = 83 30 0 490 805.
