Storage Location

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Consisting of:

7 = 0494316 Synchronizing key
NOTE: Engine: N73 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011

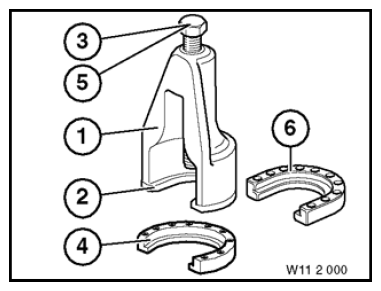

Fig 1: Identifying Extractor (0490798)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0490799 Bell housing
NOTE: Available only as a complete tool set 11 2 000 = 83 30 0 490 798 - as of 30.11.2011
2 = 0490800 Plate
NOTE: (Plate) Engine: M10, M30, S14, S38, N73 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
3 = 0490801 Spindle
NOTE: Engine: M10, M30, M70, M73, S14, S38, N73 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
4 = 0490802 Plate
NOTE: Engine: M50, M52, M60, M62 Liquidation of existing inventory and then available only via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
5 = 0490803 Spindle
NOTE: (Spindle 165 mm) Engine: M50, M52, M60, M62 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
6 = 0490804 Plate
NOTE: (Plate) Engine: M70, M73, N73 Only available via complete tool set 11 2 000 = 83 30 0 490 798 - status 30.11.2011
