0490691 111050 Fitting aid AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300494362

NOTE: (Mounting accessory) For removing and installing the valve springs Replaced by 11 9 000 (0 494 362)

Consisting of:

1 = 0490692 Clip
NOTE: (Guide bracket, cropped) Engine: S38
2 = 0490693 Basket
NOTE: (Valve spring cage) Engine: S14, S38, M50
3 = 0490694 oddments tray
NOTE: (Board) Engine: S14, S38
9 = 0490695 Nut
NOTE: (Nut (4 pieces) for pressure frame) Engine: M20, M30

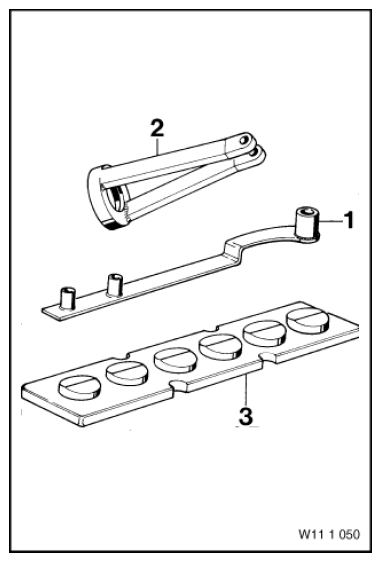

Fig 1: Identifying Fitting Aid (0490691)
Courtesy of BMW OF NORTH AMERICA, INC.
