0490663 111020 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Tool for pressure-testing cylinder head)

Consisting of:

0490664 Strip
NOTE: (sealing strips (2 pieces))
0490665 Upholstery
NOTE: (Rubber padding (2 pieces))
0490666 Adapter
NOTE: (Adapter) Engine: M20
0490667 Cover
NOTE: (cover for branch flange) Engine: M20
0490668 Adapter
NOTE: (Adapter) Engine: M20
0490669 Adapter
NOTE: (Adapter) Engine: M40

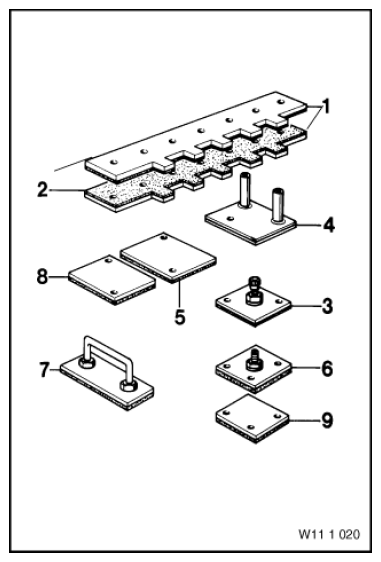

Fig 1: Identifying Device (0490663)
Courtesy of BMW OF NORTH AMERICA, INC.
0490670 Plate
NOTE: (Cover plate) For connection duct to water pump - Engine: M40
0490671 Plate
NOTE: (Cover plate for radiator flange connection) Engine: M40
0490672 Plate
NOTE: (Cover plate for heater connection) Engine: M40
