0490653 111010 Device AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressure-testing cylinder head

Consisting of:

0490654 Screw
NOTE: (screws (14 pieces))
0490655 Strip
NOTE: (sealing strips (2 pieces))
0490656 Upholstery
NOTE: (Rubber padding (2 pieces))
0490657 Connection
NOTE: (Air connection with reducer) Engine: M10
0490658 Cover
NOTE: (cover for branch flange) Engine: M10
0490659 Connection
NOTE: (Air connection) Engine: M30

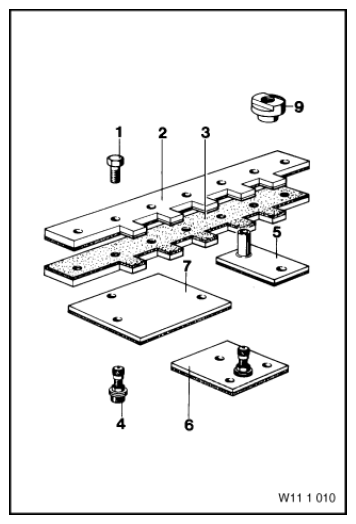

Fig 1: Identifying Device (0490653)
Courtesy of BMW OF NORTH AMERICA, INC.
0490660 Cover
NOTE: (cover for branch flange) Engine: M30
0490661 Bridge
NOTE: Engine: M30
0490662 Adapter
NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
