SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

0490647 Basket
NOTE: (Valve spring cage) Engine: M43, M73

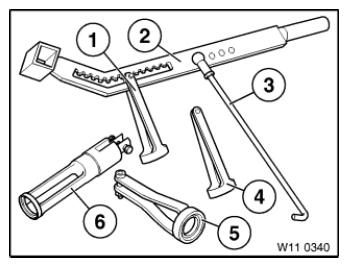

Fig 1: Identifying Fitting Aid (0490646)
Courtesy of BMW OF NORTH AMERICA, INC.
0490648 Lever
NOTE: (compression lever) Engine: all, except M10
0490649 Hook
NOTE: (hook) Length 220 mm - Engine: all, except M10 Replaced by 11 9 000 (0 494 362)
0490650 Basket
NOTE: (valve spring cage) Replaced by 11 0345, engine: M52
0490651 Basket
NOTE: (Valve spring cage) Engine: M44, M52, M62, S62, S54 Replaced by 11 9 000 (0 494 362)
0493285 Basket
NOTE: (Valve spring cage) Engine: M47, M47TU, M57, N40, N42, M67, M67TU
