SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 13 94 (888)

Consisting of:

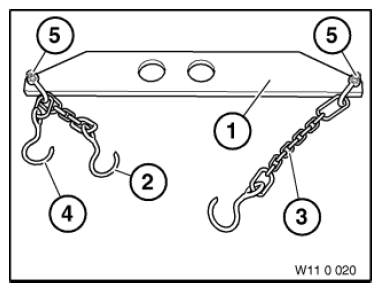

Fig 1: Identifying Lifting Gear (0490567)
G09965461Courtesy of BMW OF NORTH AMERICA, INC.
  1. 0490568  Lifting gear
    NOTE: (Cross member) As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with TUV inspection certificate and operating instructions.
  2. 0490569  Chain
    NOTE: (Chain) As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with TUV inspection certificate and operating instructions.
  3. 0490570  Chain
    NOTE: (Chain) Version: long As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with TUV inspection certificate and operating instructions.
  4. 0490571  Chain
    NOTE: (Chain) Version: short As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with TUV inspection certificate and operating instructions.
  5. 0490572  Shackle
    NOTE: (Shackle) 2 pieces As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with TUV inspection certificate and operating instructions.
