0495188 002301 Assembly stand AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: available only as complete assembly support 83 30 0 495 187.

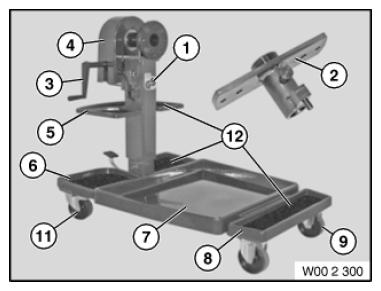

Fig 1: Identifying Assembly Stand (0495188)
G09964595Courtesy of BMW OF NORTH AMERICA, INC.
