0493778 000221 Base frame AM

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

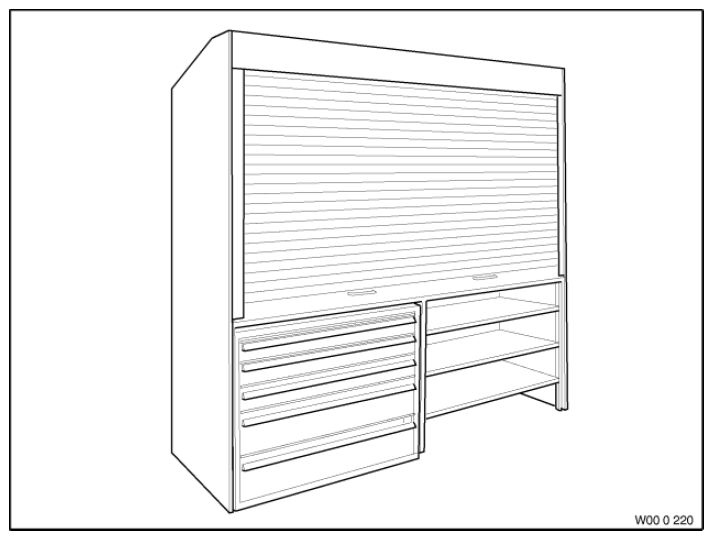

Fig 1: Identifying Base Frame (0493778)
G09964607Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: (basic frame) Basic frame with roller-blind for constructing a separate 2 m long tool cabinet. NOTE: For an individual order as an attachment frame, the complete delivery specification must already be present under order number 00 0 220 Overall length with a mounting frame: 4 m
