SI number

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 05 86 (604)

Consisting of:

1 = 0490442 Awl
NOTE: (Reamer 7.1 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
1 = 0490443 Awl
NOTE: (Reamer 7.2 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
2 = 0490444 Guide taper
NOTE: (Guide taper 7 mm) Replaced by 00 4 217 (0 490 448)

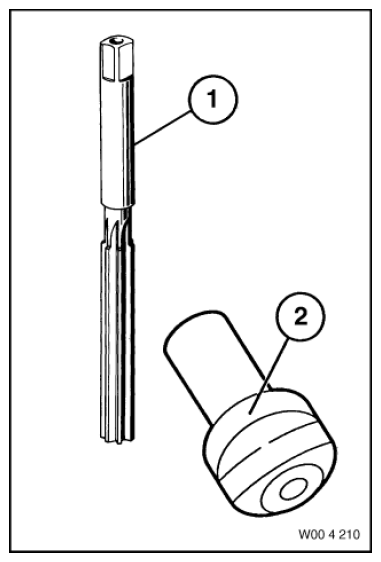

Fig 1: Identifying Awl (0490441)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0490445 Awl
NOTE: (Reamer 8.1 H7) Engine: M10, M30
1 = 0490446 Awl
NOTE: (Reamer 8.2 H7) Engine: M10, M30
2 = 0490447 Guide taper
NOTE: (Guide taper 8 mm)
2 = 0490448 Guide taper
NOTE: (Guide taper 7 mm)
1 = 0490450 Awl
NOTE: (Reamer 6.1 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
1 = 0490451 Awl
NOTE: (Reamer 6.2 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
2 = 0490452 Guide taper
NOTE: (Guide taper 6 mm)
2 = 0490453 Box
NOTE: (Storage box)
