62 11 280 Removing and installing/replacing instrument panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 030

IMPORTANT: Comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
Disconnect both negative battery leads on F03
Move steering column completely rearwards
If necessary, tape over trim and instrument panel to protect against damage
Only F25 with optional equipment sports steering wheel: Remove sports steering wheel

Insert special tool 64 1 030 in each case in second slot, on left and right, of instrument cluster (2).

Feed special tool 64 1 030 into clamp (1) and pull downward.

Feed out instrument cluster (2) in direction of arrow.

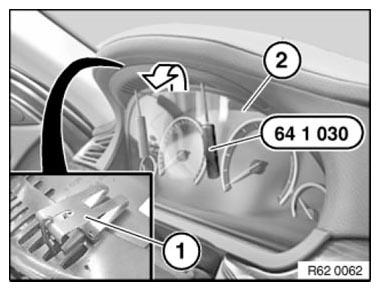

Fig 1: Pulling Special Tool (64 1 030) Into Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove instrument cluster (2).

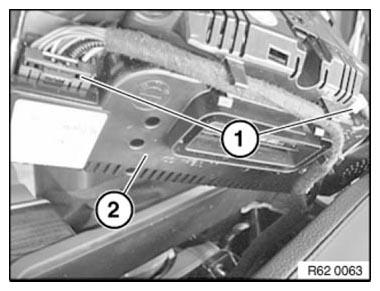

Fig 2: Identifying Instrument Cluster And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs (1) of dashboard (2) must be exactly seated in mountings of dashboard.

Fig 3: Identifying Dashboard And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out VEHICLE PROGRAMMING/ENCODING .

Check values for Condition Based Service (CBS) and correct if necessary.

If necessary, adjust HEAD-UP DISPLAY .
